The P-AVN-CL100 (ChargeLink) is a compact USB-C and HDMI source interface designed to simplify connectivity across professional AV environments. Delivering a one-cable USB-C solution that combines video, data, ethernet, and up to 100W of power, the ChargeLink streamlines BYOD workflows while maintaining pro-grade reliability and seamless integration within the PlexusAV ecosystem.
- One-Cable USB-C Simplicity
Video, data, ethernet, and up to 100W of power delivery over a single USB-C connection.
- Zero-Latency Signal Path
Direct HDMI and USB-C video switching with no compression, no buffering, and no perceptible latency for real-time presentations, collaboration, and interactive use.
- User-Friendly Source Switching
Front-panel push-button control for USB-C or HDMI selection, with auto-priority mode for simplified operation.
- Professional Connectivity
Front-panel USB-A x2, HDMI input, and USB-C input. Rear-panel HDMI output, ETH-BRIDGE RJ45, USB-C output, and locking USB-C power input.
- Compact, Placement-Friendly Design
Small footprint optimized for podiums, meeting rooms, lecture halls, and presentation furniture.
- Built for Reliability
Durable enclosure, locking power connector, and a universal power supply included for dependable performance across global deployments.
Zero-Latency Performance
- Direct Signal Path: HDMI and USB-C switching with no compression, no buffering, and no perceptible delay.
- Real-Time Operation: Suitable for live presentations, collaboration, and interactive environments.
Professional Connectivity

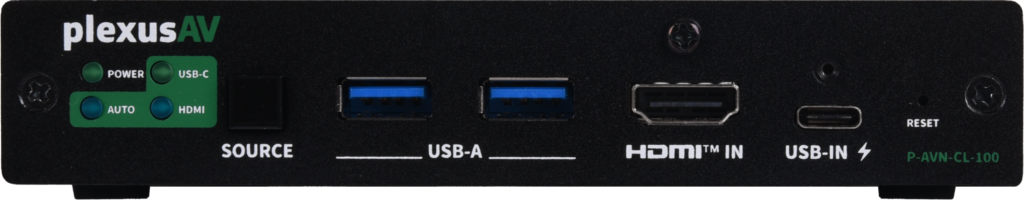

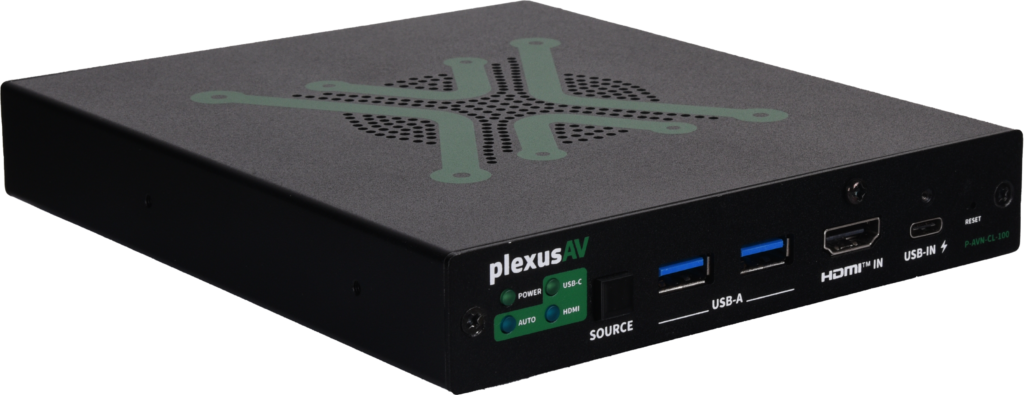

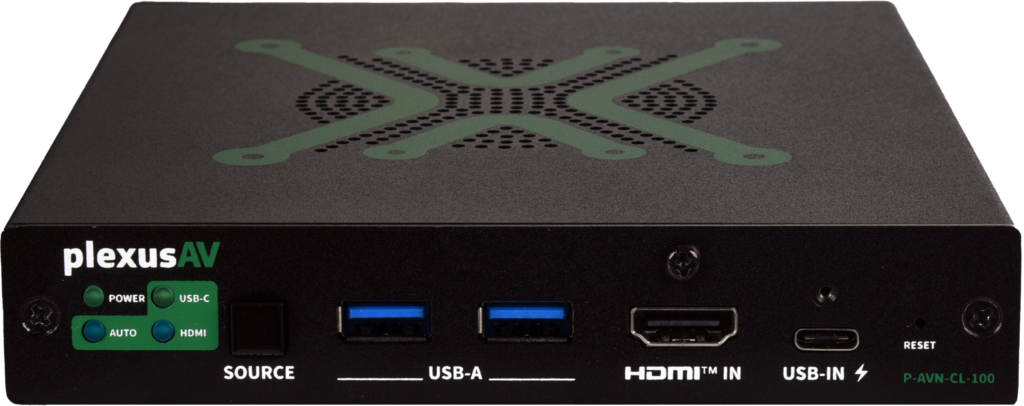

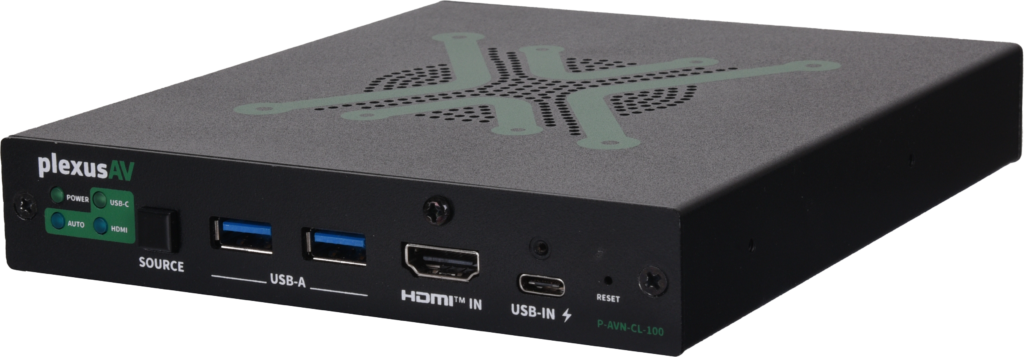

- Front Panel: USB-A x2 (USB 3.0), HDMI input (HDMI 2.1/1.4b), USB-C input (Display-ALT).

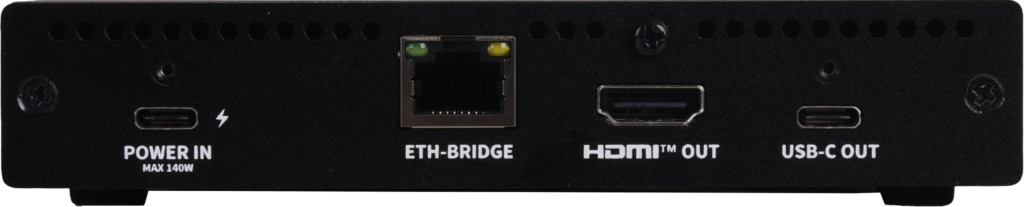

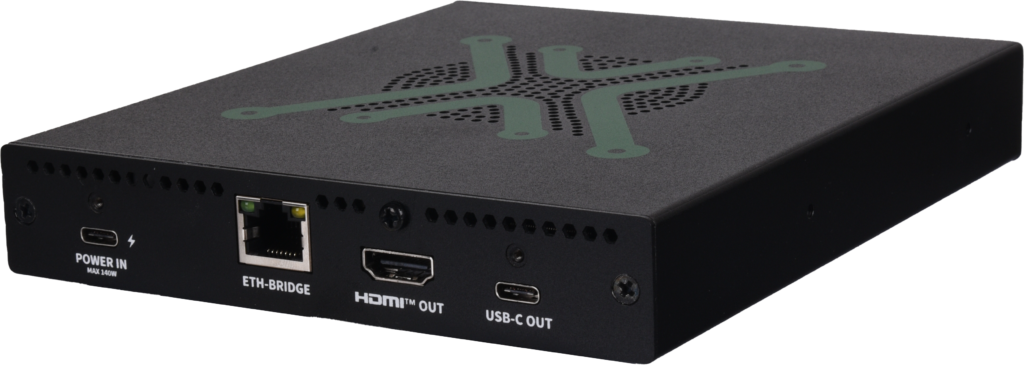

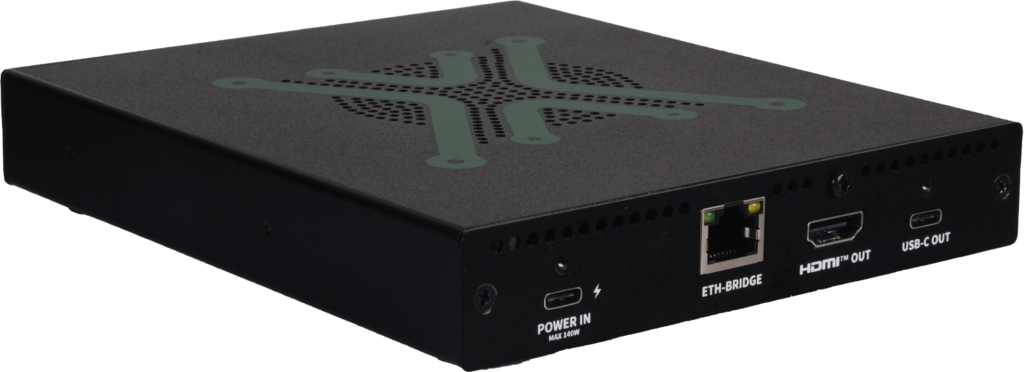

- Rear Panel: HDMI output (HDMI 2.1/1.4b), USB-C output (Display-ALT), ETH-BRIDGE RJ45 (100/1000 Auto-Negotiating), USB-C output, and locking USB-C power input.
Compact and Install-Ready Design
- Small Form Factor: 162mm x 143mm x 26mm, optimized for podiums, meeting rooms, and presentation furniture.
- LED Status Indicators: Clear visibility for power, HDMI, USB-C, and auto-select input modes.
- Locking USB-C Power Connector: Prevents accidental disconnects in active environments.
- Universal Power Supply: 100-240V, 5-60Hz, 1.9A input for global deployments.
Versatile One-Cable USB-C Connectivity
- Video, Data, and Ethernet: Combines display output, USB data, device charging, and network connectivity over a single USB-C connection.
- Up to 100W Power Delivery: Supports high-performance laptops and devices without external chargers.
- Front-Panel Push-Button Switching: Toggle between USB-C and HDMI inputs, or enable auto-priority to automatically select the active source.
The P-AVN-CL100 (ChargeLink) is built for professional AV environments where BYOD simplicity and reliable source switching are non-negotiable. Its zero-latency signal path and one-cable USB-C connectivity make it well-suited for any space where presenters plug in and get to work without friction.
