The P-AVN-6S is a single-channel uncompressed IPMX and SMPTE ST 2110 transceiver built for environments where broadcast-grade signal integrity and ProAV interoperability must operate on the same network. With native 12G-SDI I/O, PTP-to-Genlock conversion, and both 1GbE and 25GbE connectivity, it provides a direct integration path between traditional baseband infrastructure and open-standard IP distribution. JPEG-XS is also supported for bandwidth-optimized workflows over existing 1GbE infrastructure.
- *Coming Soon
- IPMX-Based Open Standards
Built on IPMX protocols for future-proof AV-over-IP deployment.
- Uncompressed Video Transport
Single-channel uncompressed IPMX and SMPTE ST 2110 transport up to 4K60 at approximately 18 Gbps, with BT.709 and BT.2020 color gamuts and HDR10/HLG support.
- PTP-to-Genlock Conversion
Synchronizes SDI outputs to IP-based timing with ±12 pixel phase accuracy via a dedicated Genlock BNC. No external timing converters needed in hybrid SDI/IP environments.
- 25GbE with ST 2022-7 Redundancy
Dual SFP28 interfaces support 10GbE and 25GbE with hitless redundancy on independent primary and secondary network paths.
- NMOS Control
IS-04, IS-05, IS-08, and IS-11 support for device discovery, connection management, audio mapping, and stream compatibility in managed IPMX deployments.
- Advanced Audio Integration
Support for Dante, AES67, and Linear PCM ensures professional-grade audio quality.
Uncompressed Video Transport
- Uncompressed IPMX and SMPTE ST 2110: Single-channel transport up to 4K60 at approximately 18 Gbps with BT.709 and BT.2020 color gamuts, HDR10, and HLG support.
- Multiple Network Ports: Includes two RJ45 ports and one SFP port for ethernet or fiber installations.
SDI and Baseband Integration

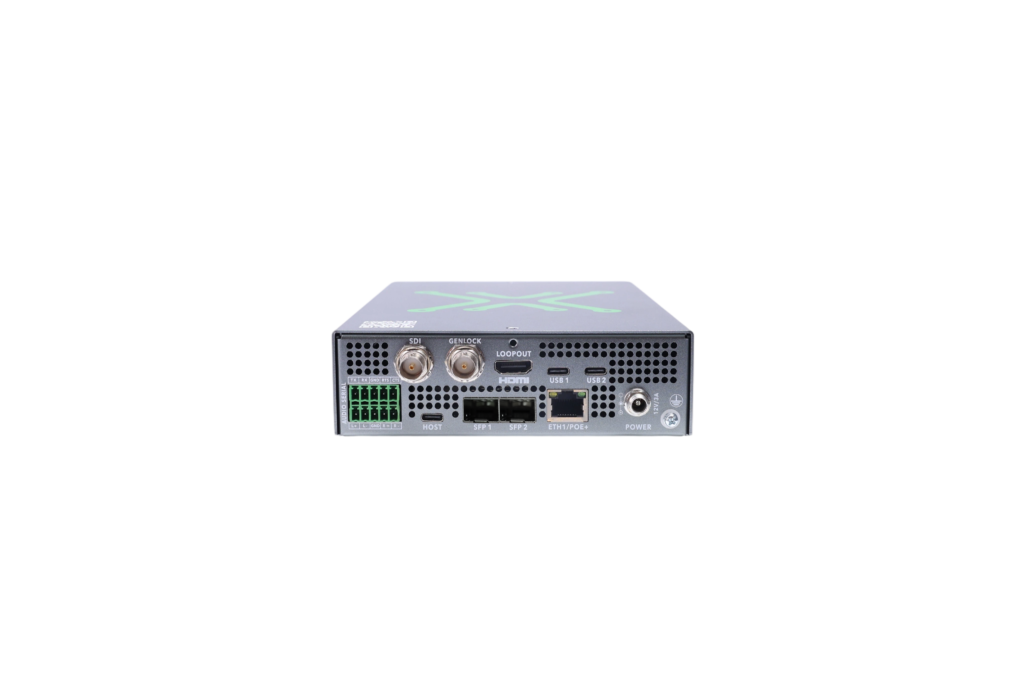

- Native 12G-SDI I/O: Input and output connect directly to existing baseband signal chains with HDMI loop-out. No external conversion hardware required.
- PTP-to-Genlock Conversion: Synchronizes SDI outputs to IP-based timing at ±12 pixel phase accuracy via a dedicated Genlock BNC per SMPTE ST 2059-2.
Network Connectivity
- 25GbE with ST 2022-7 Redundancy: Dual SFP28 interfaces support 10GbE and 25GbE with hitless redundancy on independent primary and secondary network paths.
- 1GbE RJ45: JPEG-XS operation supported over standard 1GbE infrastructure for facilities with existing network deployments.
Control and Management
- NMOS Control: IS-04, IS-05, IS-08, and IS-11 support for device discovery, connection management, audio mapping, and stream compatibility.

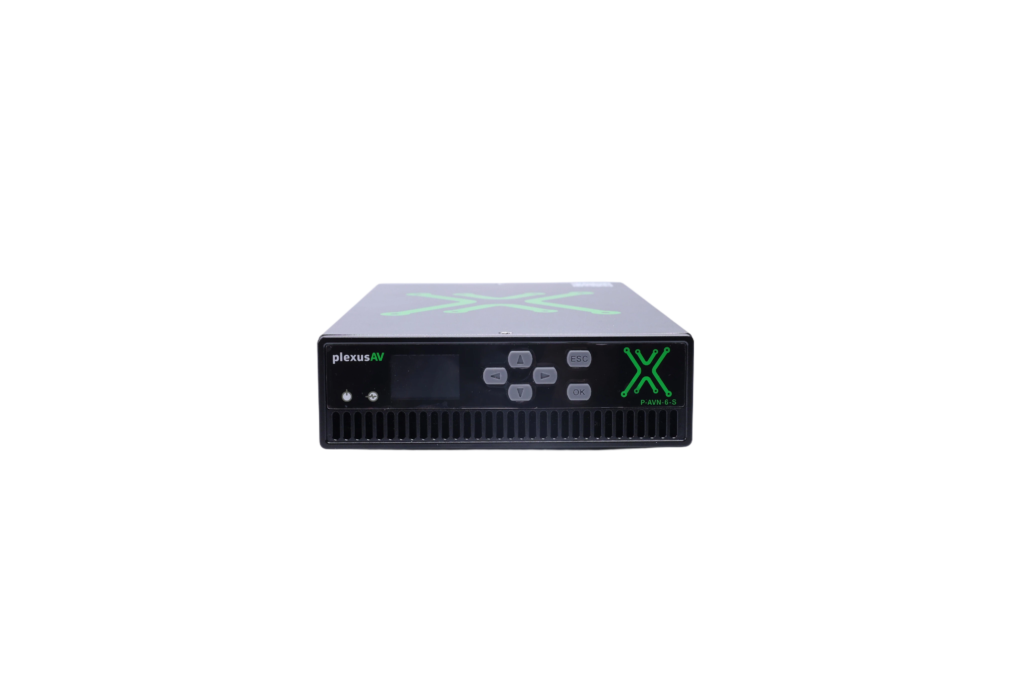

- Web UI and REST API: Local configuration via front-panel LCD with buttons, with remote and centralized management via web interface and REST API.
- Visual Array Integration: Centralized routing and monitoring across multi-device deployments via PlexusAV Visual Array.
The P-AVN-6-S is built for production environments where SDI and IP infrastructure must coexist. It is suited to signal paths where quality, timing precision, and broadcast workflow compatibility are requirements.
